DELLOK Extruded Fin Tube Machine Temperature Power 220V/380V Low Noise Touch Screen Interface

Name: DELLOK Extruded Fin Tube Machine Temperature Power 220V380V Low Noise Touch Screen Interface
Brand: DELLOK YONGHUI
Price: 9000 USD

Best DELLOK Extruded Fin Tube Machine Temperature Power 220V/380V Low Noise Touch Screen Interface wholesale

Brand Name : DELLOK YONGHUI

Model Number : EXTRUDED FIN TUBE MACHINE

Place of Origin : CHINA

Certification : CE

MOQ : 1 PC

Price : $9000-10000/Piece/Pieces

Packaging Details : WOODEN CASES

Delivery Time : 3-5 WEEKS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : ≥5 Piece Monthly

Tube Thickness : 0.2-0.6mm

Fin Average Thickness : 0.4mm

Temperature : High

Power : 220V/380V

Noise : Low

Dimension : 1000*1000*1200mm

Shape : Circular, Hexagonal, Octagonal

Operator Interface : Touch Screen

Contact Now

DELLOK Extruded Fin Tube Machine Temperature Power 220V/380V Low Noise Touch Screen Interface

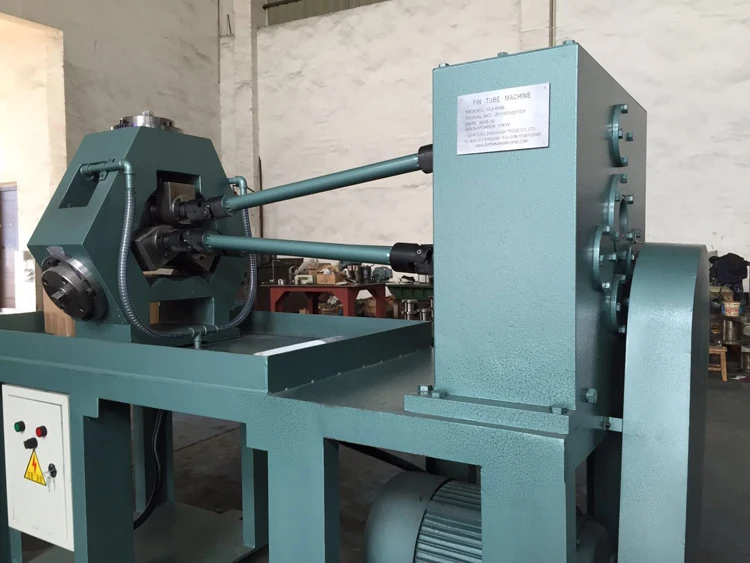

MACHINE DESCRIPTION

This machine is specially for producing extruded type spiral fin tubes in different diameters.It is capable for both bimetallic
 fin tubes and monometallic tubes, by changing extruding blades.

DELLOK Extruded Fin Tube Machine Temperature Power 220V/380V Low Noise Touch Screen Interface

high fin tube (bimetallic) & low fin tube (monometallic)

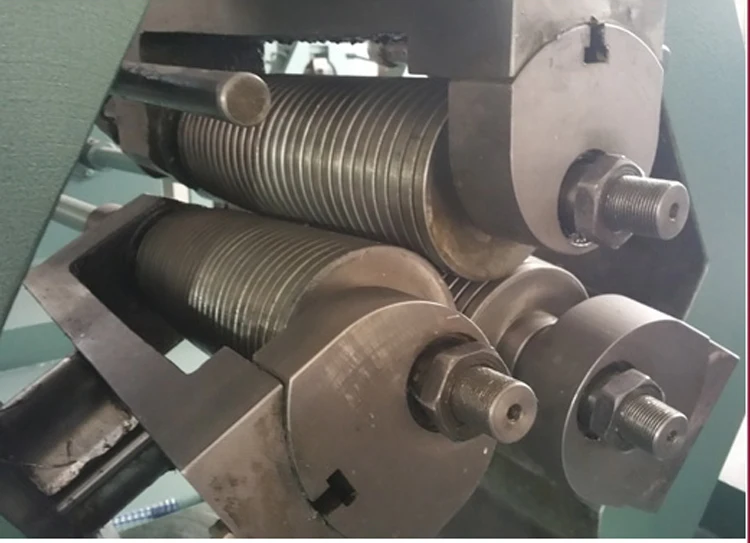

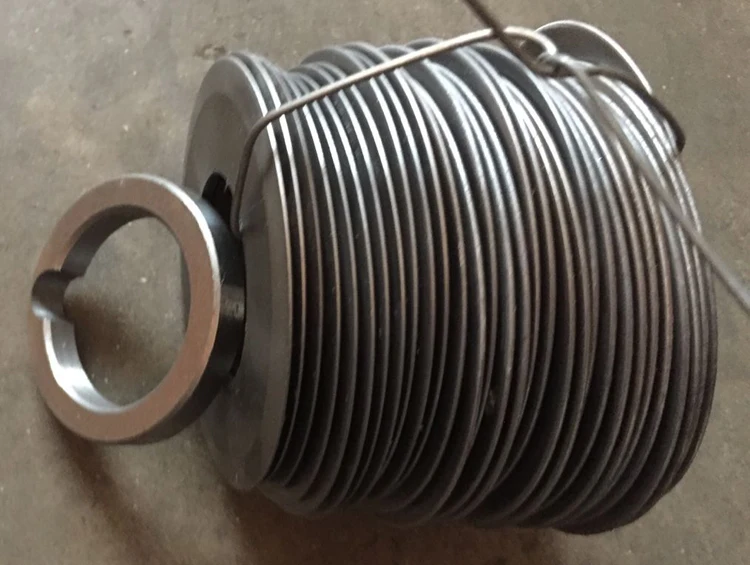

extruding blades

MAIN FEATURES

-Tool holder and tool holder body adopt advanced dual-circular-key structure, big torque withstanding, accurate and reliable displacement.
 - Tool holder adopts split type design, which is very convenient for blade debugging, cleaning & fixing
 - Blade spindle bushing adopts special taper sliding bearings which brings max. bushing utilization.
 - Universal joints and spindles are of spline linking; And coolant cooling tank is separate to main rolling machine.
 - Special extruding blade design, high efficient, long blade life

SPECIFICATIONS OF EXTRUDED FIN TUBES

No.	Item	Data
1	Base tube material	carbon steel, stainless steel, copper
2	Base tube diameter range	Φ15~45mm
3	Fin material	aluminum or copper
4	Extruded fin thickness	0.3~0.7mm
5	Extruded fin height	max. 16mm (aluminum) / 8mm (copper)
6	Max. OD of finned tube	Φ77mm (aluminum) / Φ50mm (copper)
7	Applicable fin pitch	FPI 7, FPI 8, FPI 9, FPI 10, FPI 11
8	Max. fin tube length	15m

TECHNICAL DATA OF FIN TUBE MACHINE

Item	Data
Center line height of main spindle to worktable	345mm
Height of worktable	718mm
Output spindle rotating speed	80rpm; 100rpm; 120rpm
Fin rolling speed	0.6m/min; 0.75m/min; 0.9m/min
Main driving motor power	11kW
Coolant water pump motor power	0.12kW
Machine weight	About 1500kg
Overall dimension (packed)	About 2450 x 1000 x 1650mm

DELLOK Extruded Fin Tube Machine Temperature Power 220V/380V Low Noise Touch Screen Interface

FAQ

Q1: What is an extruded fin tube?

A: An extruded fin tube is a type of heat exchanger tube that features fins extruded directly onto the surface of the tube. These fins enhance the heat transfer efficiency by increasing the surface area exposed to the heat transfer fluid.

Q2: What are the benefits of using extruded fin tubes?

A: Extruded fin tubes offer several benefits, including improved heat transfer efficiency, increased durability, and resistance to corrosion. The fins are integrated into the tube wall, providing a stronger structure compared to attached fins.

Q3: How are extruded fin tubes manufactured?

A: Extruded fin tubes are manufactured by passing a metal tube through a die that extrudes the fins onto the tube surface. The process is carefully controlled to ensure the fins are evenly spaced and of the desired height.
